电动车辆的母线和软连接

电动车辆的母线和软连接

CONNESSIONE AUTO ELETTRICHE


  情 介 绍

Technical details

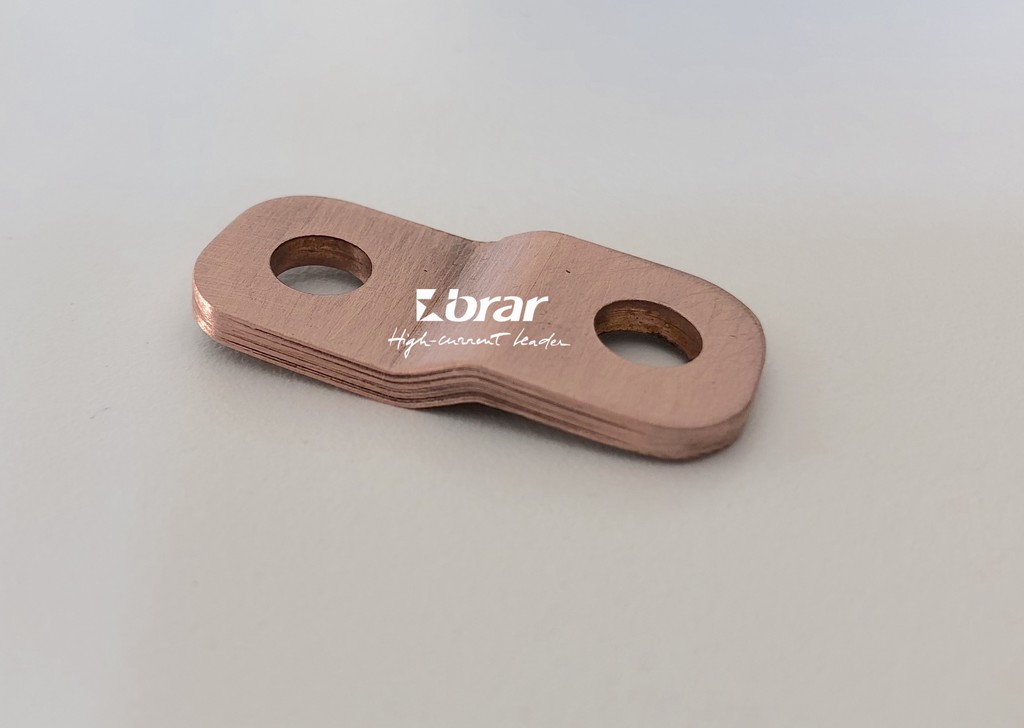

Laminated Flexible Connections are electrical conductors made of copper foils

stacked together to reach the copper section required and manufactured according

to the design requirements.

The copper foils are press-welded together in some area, typically at the sides.



Laminated Flexible Connections allows thermal expansion and minimize the vibration transmission.

Laminated Flexible Connections can be equipped with inserts and other components.



> Copper foils as per EN 13599, thickness 0,1-0,3mm, material Cu-HCP conductivity Min 98% IACS.
Dimensional gauges control
Voltage drop test to check the correct conductivity of press-welding process
Metallographic inspection to evaluate the correct joining of copper foils where press-welded
Different treatments according to Customer specification.
Contamination acceptability limits.
Shrink tube protections.
